Product Details:
|
| Name: | Factory Direct Price Orange Dredging Pipe Float Plastic Pontoon Floater For Dredging | Material: | Out Shell PE, Inner Foam: PU |
|---|---|---|---|
| Color: | Orange /Yellow | Dimension: | DN60-1200mm |
| Connection: | Galvanised Bolts Nuts And Washers | Shape: | Clinder |
| Highlight: | PE Float,buoy floating in water,buoy float materials |
||

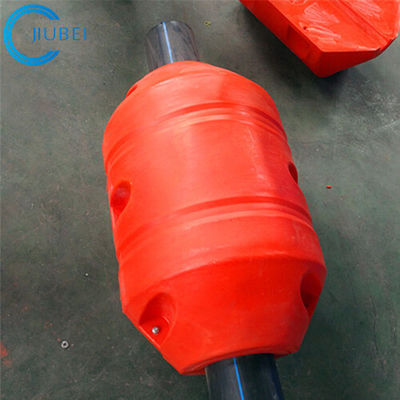

PE Float for UHMWPE Dredging Pipeline
PE Floats are generally moulded by a high wear resistant PE. The design is set up to achieve a strong but flexible float. Many different types of ring floats are available to suit requested application. The floater has good property of impact resistance, waves resistance, reasonable structure, easy assemble,very popular as floating material of dredging.With reasonable becomes the ideal substitution of the traditional steel floater for thr floating dredging pipes.
PE Float Dimension:
| Float I.D. (mm) |
Float O.D.(mm) | Float Length(mm) |
Thickness of Hull(mm) |
Floater Buoyancy (kg) |
| 110 | 500 | 500 | 7 | 98 |
| 125 | 500 | 800 | 7 | 150 |
| 160 | 500 | 800 | 7 | 145 |
| 220 | 600 | 700 | 7 | 180 |
| 250 | 600 | 700 | 7 | 175 |
| 280 | 700 | 900 | 7 | 340 |
| 310 | 900 | 1000 | 8 | 550 |
| 320 | 1000 | 1000 | 9 | 650 |
| 350 | 950 | 1000 | 9 | 600 |
| 390 | 1000 | 1000 | 9 | 600 |
| 400 | 1100 | 1100 | 9 | 900 |
| 450 | 1200 | 1200 | 11 | 1100 |
| 460 | 1300 | 1300 | 12 | 1400 |
| 495 | 1300 | 1300 | 12 | 1400 |
| 520 | 1300 | 1450 | 12 | 1500 |
| 550 | 1300 | 1500 | 12 | 1750 |
| 560 | 1400 | 1500 | 12 | 1900 |
| 600 | 1400 | 1600 | 13 | 2100 |
| 620 | 1450 | 1700 | 13 | 2400 |
| 670 | 1500 | 1860 | 14 | 2800 |
| 720 | 1500 | 1860 | 14 | 2800 |
| 735 | 1500 | 1800 | 14 | 2700 |
| 760 | 1800 | 2050 | 15 | 3100 |
| 800 | 1800 | 2160 | 15 | 3300 |
| 890 | 2000 | 2400 | 15 | 4600 |
| 940 | 2040 | 2500 | 16 | 4900 |
| 1040 | 2400 | 2600 | 16 | 7000 |
| 1140 | 2300 | 2550 | 16 | 7000 |
