Product Details:
|
| Name: | Factory Direct Price Orange Dredging Pipe Float Plastic Pontoon Floater For Dredging | Material: | Out Shell PE, Inner Foam: PU |
|---|---|---|---|
| Color: | Orange /Yellow | Dimension: | DN60-1200mm |
| Connection: | Galvanised Bolts Nuts And Washers | Shape: | Clinder |
| Highlight: | floating buoy on water,marker floats,floating marker in the ocean |
||

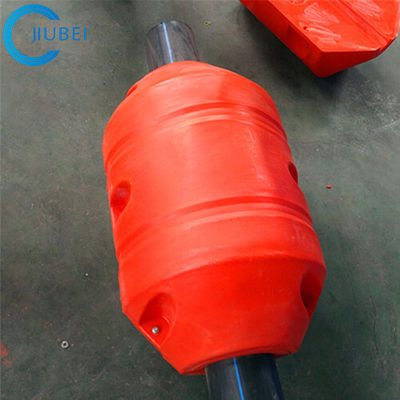

Long Life Foam Filled Medium Density Polyethylene Pre Insulated Floater
The shell of the dredger is made of PE material with good flexibility, the inside is filled with high-density polyurethane foam. With reasonable structure and buoys, they are the ideal replacement for steel floats of floating unloading pipes.
1. Good flexibility and excellent impact resistance, especially suitable for offshore installation;
2. Light weight, easy to install and handle, lower transportation cost;
3 .Corrosion resistant with longer life, can be 3 times longer than steel floats.
4. Cost and efficiency are more economical than steel floats.
5. Normally 1 pair of 2-piece floats is 1 pair, 2-pair floats are 1 group, 1 group float can float 6 meters long and 1 steel pipe.Rubber hose 5 meters long.
Characteristics of polyethylene foam float:
1. Float has lower pressure, reasonable energy absorption;
2. When the ship is moored, the buoy has great adaptability to the rolling and tilting of the ship;
3. With low density, convenient for installation and maintenance;
4 .It has a wide application and is not affected by small ships or large ships;
5. High impact resistance, wear resistance, not aging in natural conditions, quite economical and durable.
Note: two pairs of buoys form a group and two pieces form a pair. The group buoy can float a 6 meter long dredge. If there are special specifications, we can make according to the user's request.
Mechanical Strength of Floater:
| No. | Item | Performance | |
| 1 | Tensile Strength Mpa≥ | 12 | |
| 2 | Elongation at break %≥ | 10 | |
| 3 | Impact Strength KJ/㎡ | 31 | |
| 4 | Bending Strength Mpa≥ | 15.7 | |
| 5 |
Weather Resistance (total 3.5GJ/㎡ aging capacity) |
Elongation at break %≥ |
10 |
| 6 | OIT 200℃ mm≥ | 10 | |
