Product Details:
|
| Name: | Factory Direct Price Orange Dredging Pipe Float Plastic Pontoon Floater For Dredging | Material: | Out Shell PE, Inner Foam: PU |
|---|---|---|---|
| Color: | Orange /Yellow | Dimension: | DN60-1200mm |
| Connection: | Galvanised Bolts Nuts And Washers | Shape: | Clinder |
| Highlight: | water hose float,suction hose floats,float hose |
||

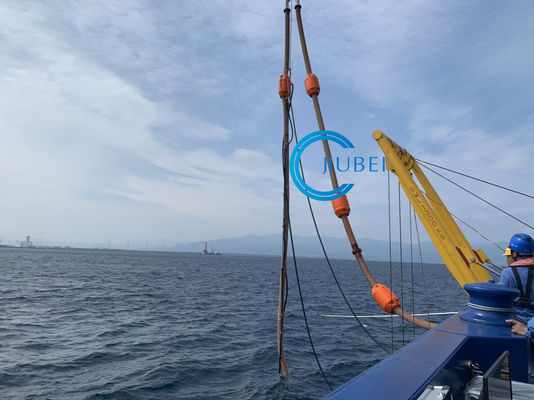

The Underwater Pressure-Resistant Polyethylene Oil Hose Float
The float is applied to work under water, depth 20meters.
The polyethylene floating body is orange, which can be used as a warning sign to effectively prevent the ship from hitting the pipeline. The underwater pressure-resistant polyethylene floating body is resistant to oil, gasoline and diesel. It is better to pay attention when using it. The floating body shall be installed with the base plates, bolts and straps provided by the manufacturer. The tightness shall be appropriate during installation, and the plastic shall not be deformed. The installation shall be equipped with double nuts. During installation, sharp objects should be avoided from stabbing the floating body.
PE Float Dimension:
| Float I.D. (mm) | Float O.D.(mm) | Float Length(mm) | Thickness of Hull(mm) | Floater Buoyancy (kg) |
| 110 | 500 | 500 | 7 | 98 |
| 125 | 500 | 800 | 7 | 150 |
| 160 | 500 | 800 | 7 | 145 |
| 220 | 600 | 700 | 7 | 180 |
| 250 | 600 | 700 | 7 | 175 |
| 280 | 700 | 900 | 7 | 340 |
| 310 | 900 | 1000 | 8 | 550 |
| 320 | 1000 | 1000 | 9 | 650 |
| 350 | 950 | 1000 | 9 | 600 |
| 390 | 1000 | 1000 | 9 | 600 |
| 400 | 1100 | 1100 | 9 | 900 |
| 450 | 1200 | 1200 | 11 | 1100 |
| 460 | 1300 | 1300 | 12 | 1400 |
| 495 | 1300 | 1300 | 12 | 1400 |
| 520 | 1300 | 1450 | 12 | 1500 |
| 550 | 1300 | 1500 | 12 | 1750 |
| 560 | 1400 | 1500 | 12 | 1900 |
| 600 | 1400 | 1600 | 13 | 2100 |
| 620 | 1450 | 1700 | 13 | 2400 |
| 670 | 1500 | 1860 | 14 | 2800 |
| 720 | 1500 | 1860 | 14 | 2800 |
| 735 | 1500 | 1800 | 14 | 2700 |
| 760 | 1800 | 2050 | 15 | 3100 |
| 800 | 1800 | 2160 | 15 | 3300 |
| 890 | 2000 | 2400 | 15 | 4600 |
| 940 | 2040 | 2500 | 16 | 4900 |
| 1040 | 2400 | 2600 | 16 | 7000 |
| 1140 | 2300 | 2550 | 16 | 7000 |
