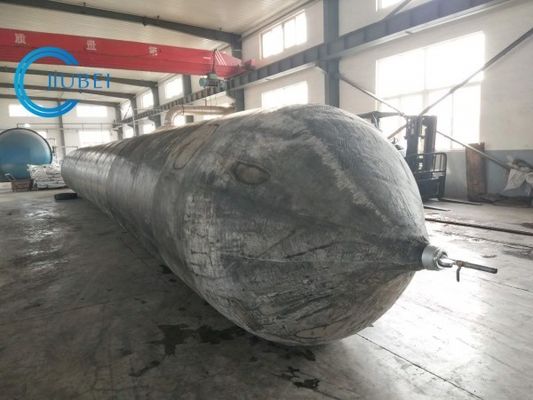

0.8-2m Ship Marine Salvage Air Bags With Pressure Gauage

Product Description:

1.Standard size of marine airbags

Diameter(D):0.8~2.0m

Effective Length(EL):6~18m

Total Length(TL):7~19.5m

2 Standard number of layer

In order to confirm airbag's safety working pressure

we define the number of layers,which means the

number of synthetic-tire-cord layers.Normally we

offer marine airbags with 4,5,6,7,8 layers.Other

types are available upon request.

3.Material type of Synthetic-tire-cord

There are two kinds of synthetic-tire-cords with different performance.Refer to following table.

Features:

Technical Parameters:

Durtarand InnerRubberMaterialParfomanca
Test Item Test Method Required Value
Outer Rubber Inner Rubber
1.Before Ageing
1.1 Tensile Strength ISO37:1994 18 Mpa or more 10 Mpa or more
1.2 Elongation ISO37:1994 400%or more 400%or more
1.3 Hardness ISO 7619:1997 60±10(Shore A) 50±10(Shore A)
2.Afterageing ISO 188:1998 Air oven ageing,70℃±1C96h Air oven ageing,70℃±1C96h
2.1 Tensile Strength 2.2 Elongation 2.3 Hardness		ISO37:1994 ISO37:1994 ISO 7619:1997	≥80%of the oiginal property ≥80%of the original property Not to exceed that original property by more than 8
3.Tear 4.Compression set 5.Static ozone ageing test *A:No cracks after elongation	ISO34-1:1994 400 N/cm or more iSO815:1991 30%(70℃±122h)or less ISO1431-1:1989 *A by 20%and exposure to 50 pphma at 40℃for 96h			No requirement No requirement No requirement
