Product Details:
|
| Material: | NBR, With HB40 Ring Reinforced | Name: | Armored Rubber Hose |
|---|---|---|---|
| Length: | Customer Made | Connection: | Flange |
| Application: | Sand/coral/ Rock Dredging | Working Pressure: | 1~2.5Mpa |
| Highlight: | braided rubber fuel line,nylon braided rubber hose,rubber braided hose pipe |
||

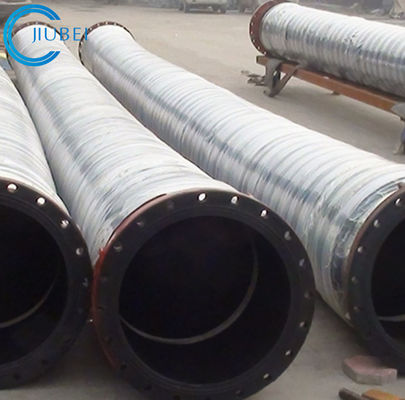

Armoured Mud Suction and Discharge Dredging Rubber Hose
Our range of dredge pipes includes floating dredge pipes, outflow dredge pipes, suction pipes and armored pipes.
1. Pipe can be supplied in bore diameters from 150mm (6") to 900mm (36") or larger upon request
2. Lengths available up to 11.8m
3.Suitable for working pressures up to 30 bar
4. Available in float or submersible version
5. Complementary sleeve design suitable for suction or pressure
6. Manufactured to ISO 9001:2000 quality standards (latest edition)
Textured coating
Synthetic rubber used for casing achieve maximum adhesion that resists corrosion and damage during use.
Reinforcement
Multiple layers of high-strength reinforcement materials help prevent fatigue and physical damage while maintaining flexibility.Fully integrated steel wire spools prevent twisting and pinching.
Coating The outer coating of the
rubber hose resists abrasion and wear from seawater and oil. It has a light orange spiral strap coated with a tough light orange polyurethane.
advantages The
dredge pipe is light, strong and flexible. It is abrasion resistant, corrosion resistant, UV resistant and aging resistant.This marine hose can be connected directly through the flange. The efficiency of the gearbox is 20%-30% higher than that of steel pipes due to its friction coefficient. It can be used for long-term installation in water or on land. Applications of the
The
dredge hose is used for river cleaning, dredging, sand pumping, land reclamation, port expansion and other mud or mortar handling operations.
Our floating dredging hoses are designed for draining seawater, silt, sand and other dredging applications from harbors and shipyards.They are often used as part of the dock and harbor building process.
Dimension:
| Size (inch) | I.D(mm) | W.P.(bar) | Length(m) |
| 8 | 200 | 15~25 | 11.8 |
| 10 | 250 | 15~25 | 11.8 |
| 12 | 300 | 15~25 | 11.8 |
| 16 | 400 | 15~25 | 11.8 |
| 20 | 500 | 15~25 | 11.8 |
| 24 | 600 | 15~25 | 11.8 |
| 26 | 650 | 15~25 | 11.8 |
| 30 | 750 | 15~25 | 11.8 |
| 32 | 800 | 15~25 | 11.8 |
| 34 | 850 | 15~25 | 11.8 |
| Other dimensions can be customized as requirements. | |||
Detail images:
Inspection of heavy duty armored rubber hose:
