Product Details:
|
| Name: | DN800 Dredging Pipe Floats For Steel Dredging Tube | Dimension: | I.D800mm O.D1800mm Length: 2160mm |
|---|---|---|---|
| Color: | Yellow Or Orange | Shell Thickness: | 10mm~16mm |
| Foam Density: | 35kg/cub | Buoyancy: | 3500kg/pair |
| Highlight: | floating dredge pipe,dredge pipe floats for sale,Dredging Tube Buoyancy 3500kg |
||

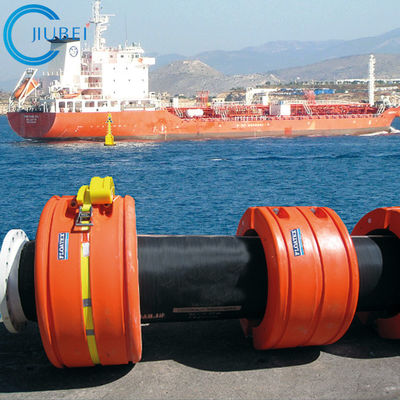

DN800 Dredging Pipe Floats for Steel Dredging Tube
The Single Point Vertical Inflatable Buoyancy Pipe Float Marine Buoys Dredge Floater is one kind enclosed pipeline buoyancy units. It only has one single lifting point. So it can work at large angle, like the parachute type air lift bags.
Single Point Vertical Inflatable Buoyancy Pipe Float Marine Buoys Dredge Floater are made of heavy duty PVC coating fabric material comply with IMCA D-016. Each enclosed mono buoyancy unit is fitted with pressure relief valves, and filling/discharge ball valves. One internal strop is used to connect the top lifting point with the bottom lifting point. We also can make lifting belts from the top to the bottom to reinforce the lifting capacity.
| NO. | Item | Specification |
| 1 | I.D | 800MM |
| 2 | O.D | 1800MM |
| 3 | LENGTH | 2160MM |
| 4 | OUTSHELL THICK | 12MM |
| 5 | FOAM DENSTIY | 35KG/CUB |
| 6 | WEIGHT | 302KG/PAIR |
| 7 | BUOYANCY | 3500KG/PAIR |

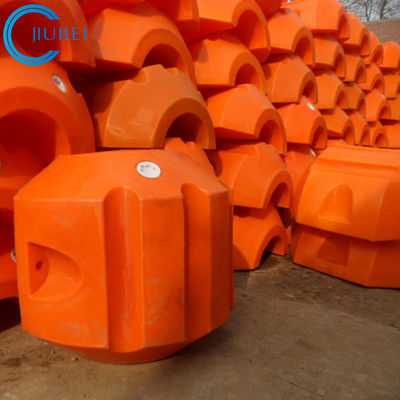

Other dimension of dredging pipe floats:
| Float I.D. (mm) |
Float O.D.(mm) | Float Length(mm) |
Thickness of Hull(mm) |
Floater Buoyancy (kg) |
| 110 | 500 | 500 | 7 | 98 |
| 125 | 500 | 800 | 7 | 150 |
| 160 | 500 | 800 | 7 | 145 |
| 220 | 600 | 700 | 7 | 180 |
| 250 | 600 | 700 | 7 | 175 |
| 280 | 700 | 900 | 7 | 340 |
| 310 | 900 | 1000 | 8 | 550 |
| 320 | 1000 | 1000 | 9 | 650 |
| 350 | 950 | 1000 | 9 | 600 |
| 390 | 1000 | 1000 | 9 | 600 |
| 400 | 1100 | 1100 | 9 | 900 |
| 450 | 1200 | 1200 | 11 | 1100 |
| 460 | 1300 | 1300 | 12 | 1400 |
| 495 | 1300 | 1300 | 12 | 1400 |
| 520 | 1300 | 1450 | 12 | 1500 |
| 550 | 1300 | 1500 | 12 | 1750 |
| 560 | 1400 | 1500 | 12 | 1900 |
| 600 | 1400 | 1600 | 13 | 2100 |
| 620 | 1450 | 1700 | 13 | 2400 |
| 670 | 1500 | 1860 | 14 | 2800 |
| 720 | 1500 | 1860 | 14 | 2800 |
| 735 | 1500 | 1800 | 14 | 2700 |
| 760 | 1800 | 2050 | 15 | 3100 |
| 800 | 1800 | 2160 | 15 | 3300 |
| 890 | 2000 | 2400 | 15 | 4600 |
| 940 | 2040 | 2500 | 16 | 4900 |
| 1040 | 2400 | 2600 | 16 | 7000 |
| 1140 | 2300 | 2550 | 16 | 7000 |
