Product Details:
|
| Name: | Self Floating Rubber Hose | Material: | NBR With High Density HDPE Foam |
|---|---|---|---|
| Connection: | Steel Flange | Length: | 11.8m/unit |
| Diameter: | DN300~1150mm | Application: | Dredging |
| Highlight: | flexible dredging hose 10inch 11.8M,flexible dredge hose,hose for dredging |
||
Dredge Dredger Dredging Discharge Sand Mud Hydraulic Rubber Hose
Features: unique seamless formation, fully closed, anti-corrosion, anti-aging and strong impact resistance; The inner filler is polyurethane foam, which is molded in one go and is not easy to break. It is particularly suitable for construction in working waters with strong winds and waves.
Performance:
1, Outer cover with excellent abrasion resistance and UV protection.
2, Wearing colored indicator layer.
3, Single foam floatation casing, preventing water absorption. The hose emergence above water is not less than 20%of the total volume.
4, High quality, wear resistant rubber .
5, Flange design according to customers’ request.
6, Bending angle: In working condition, the bending angle is from 0° to 45°.
Dimension:
| Size (inch) | I.D(mm) | W.P.(bar) | Length(m) |
| 8 | 200 | 15~25 | 11.8 |
| 10 | 250 | 15~25 | 11.8 |
| 12 | 300 | 15~25 | 11.8 |
| 16 | 400 | 15~25 | 11.8 |
| 20 | 500 | 15~25 | 11.8 |
| 24 | 600 | 15~25 | 11.8 |
| 26 | 650 | 15~25 | 11.8 |
| 30 | 750 | 15~25 | 11.8 |
| 32 | 800 | 15~25 | 11.8 |
| 34 | 850 | 15~25 | 11.8 |
| Other dimensions can be customized as requirements. | |||

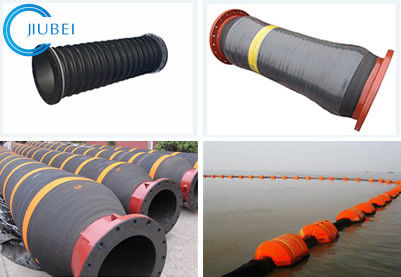

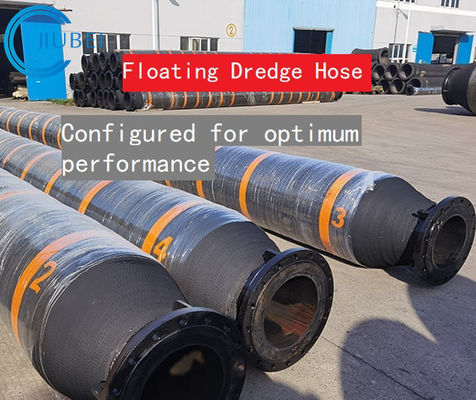

Detail images:
