Product Details:
|
| Name: | Self Floating Rubber Hose | Material: | NBR With High Density HDPE Foam |
|---|---|---|---|
| Connection: | Steel Flange | Length: | 11.8m/unit |
| Diameter: | DN300~1150mm | Application: | Dredging |
| Highlight: | Suction Self Floating Dredge Hose,Self Floating Dredge Hose 6inch,Floating hoses dredge line |
||
Professional Design Marine Self-Floating Flexible Rubber Hose Pipe For Sand Mud Slurry Dredging
characteristics
1. Outer cover with excellent abrasion resistance and UV protection.
2. Inner layer with excellent abrasion resistance and high quality.
3. Single foam flotation casing to prevent water absorption.
4. Wear colored indicator layer.
5. Area above water not less than 20% of total volume.
6. Bending angle: in working condition, the bending angle is from 0°to 45°.
7. Low center of gravity, strong anti-wave ability, good stability.
8. Easy installation, good adhesion, long service life.
9. The product can be customized according to customers' requirements.
structure and material
1. Inner rubber layer: NR, SBR or BR.
2. Reinforcement layer: tire cord with helix wire and floating material layer.
3. Floating layer: PE.
4. External rubber layer: SBR and CR compound.
5. Safety factor: 1:3.
Dimension:
| Size (inch) | I.D(mm) | W.P.(bar) | Length(m) |
| 8 | 200 | 15~25 | 11.8 |
| 10 | 250 | 15~25 | 11.8 |
| 12 | 300 | 15~25 | 11.8 |
| 16 | 400 | 15~25 | 11.8 |
| 20 | 500 | 15~25 | 11.8 |
| 24 | 600 | 15~25 | 11.8 |
| 26 | 650 | 15~25 | 11.8 |
| 30 | 750 | 15~25 | 11.8 |
| 32 | 800 | 15~25 | 11.8 |
| 34 | 850 | 15~25 | 11.8 |
| Other dimensions can be customized as requirements. | |||

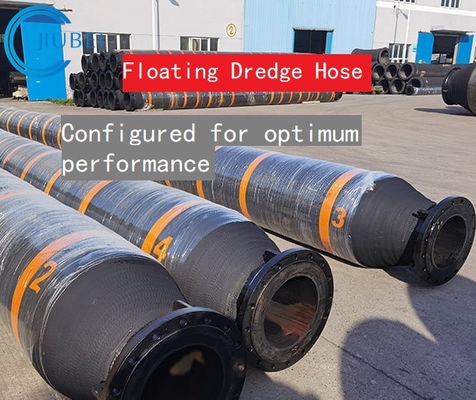

Detail images:
